GROWING RACKS

SPACE AND TIME-SAVING SOLUTIONS

We offer growing racks in easy-to-assemble kits, made of anodized aluminum, stainless steel or epoxy-coated steel, with customizable LED lighting and height-adjustable shelves to suit various growing needs.

Estanterías para crecimiento de plantas y algas en ambientes controlados.

GROWING AND CULTIVATION RACKS

The costs of a project can be greatly increased by including the specialized labor to carry out the project. Labor hours, travel, per diems and hotels are elements to be taken into account at the time of installation, but when the installations are simple, this cost can be saved.

Testing Lab Equipments, seeing the market need, has developed complete racks that are easy to assemble by the customer himself, with the aim of reducing installation costs. A simple, easy to install and controllable solution for in vitro or in vivo plant cultivation.

The standard format can be configured with any profile or existing light plates. However, we manufacture adaptable shelving whatever your needs are:

Estantería para cultivo. Kit de estantería para cámaras de cultivo y cámaras climáticas. Con iluminación Led.

DIFFERENT MATERIALS AND FINISHES

Anodised aluminium. Stainless steel, or epoxy coated steel. Manufactured with robust materials and prepared to withstand the most demanding temperature and humidity conditions.

LIGHTING

With LED illumination according to user requirements. Normally White and Far Red. 16 shelves (8 per unit) controlled in parallel by a single light controller.

OPTIONAL PROTOCOLS

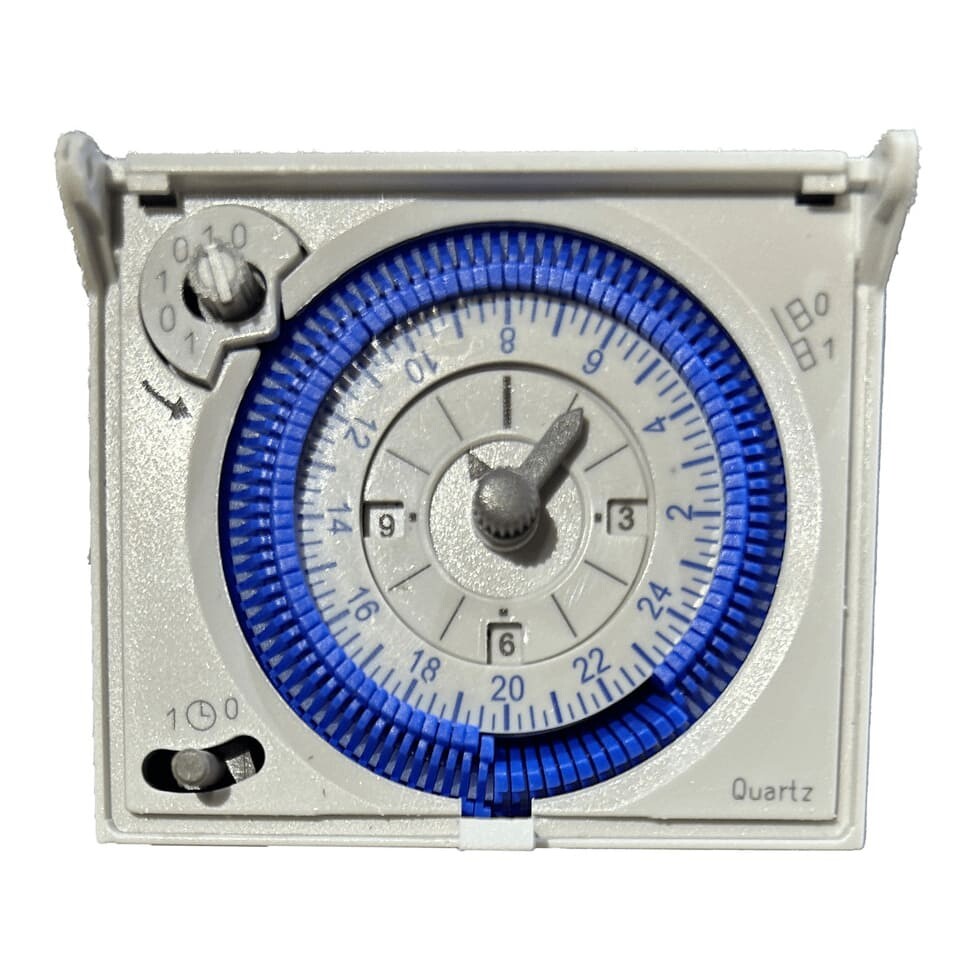

The light controller allows full control of light intensity, modulation and timing (optional protocols are also available).

VERSATILITY

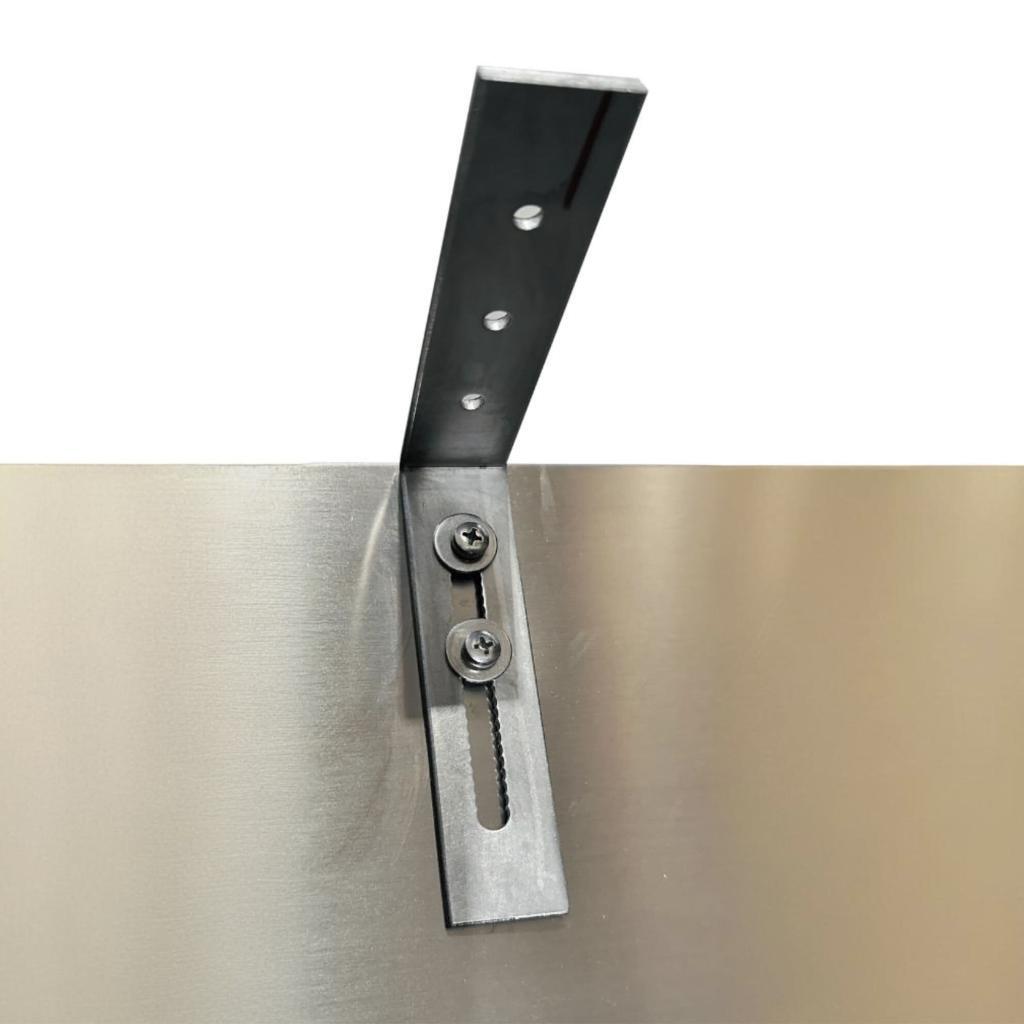

Height adjustable shelves with a 100mm step. For taller plants, the individual shelves can be easily removed from the system.

DIMENSIONS

The standard dimensions of the shelves are:
• 800/100/1200/1400/1500 mm Length.
• 400/500/600/700 mm Depth
• 1700/1800/2000 mm Height.

Luces led para cultivos en interior, led lights solutions for interior growth
Luces led para cultivos en interior, led lights solutions for interior growth
Luces led para cultivos en interior, led lights solutions for interior growth

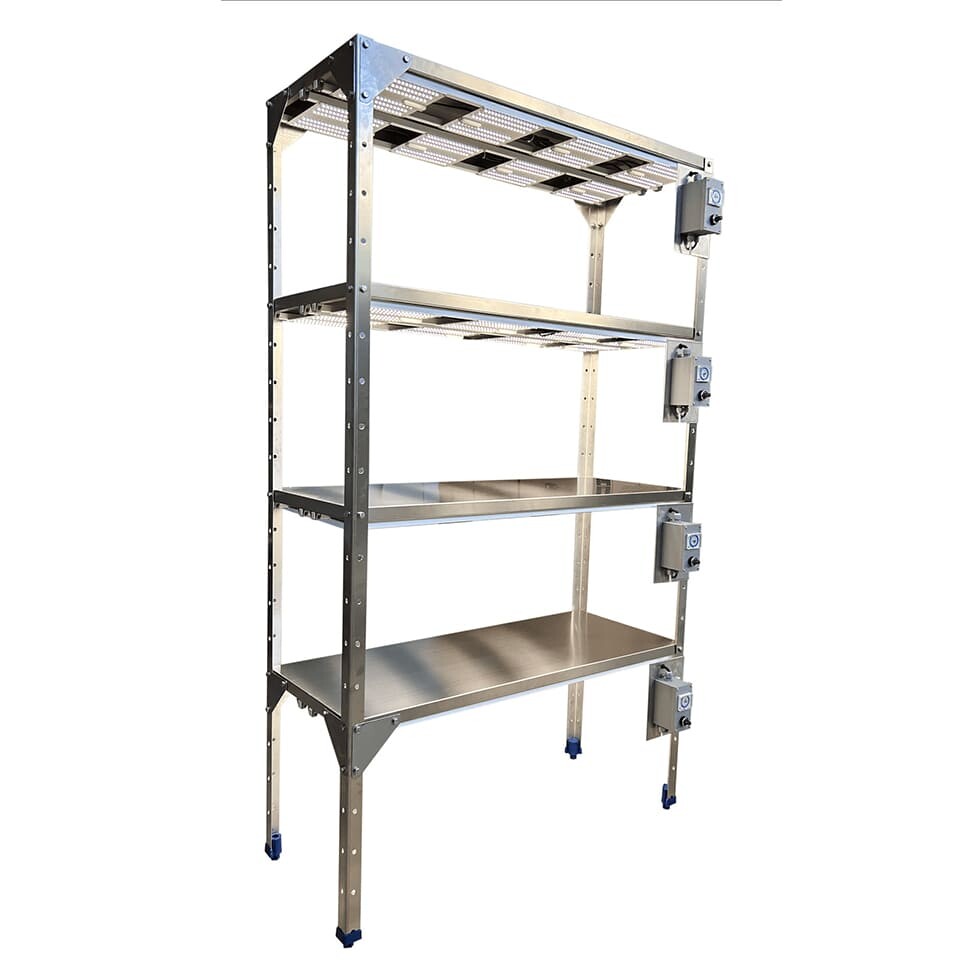

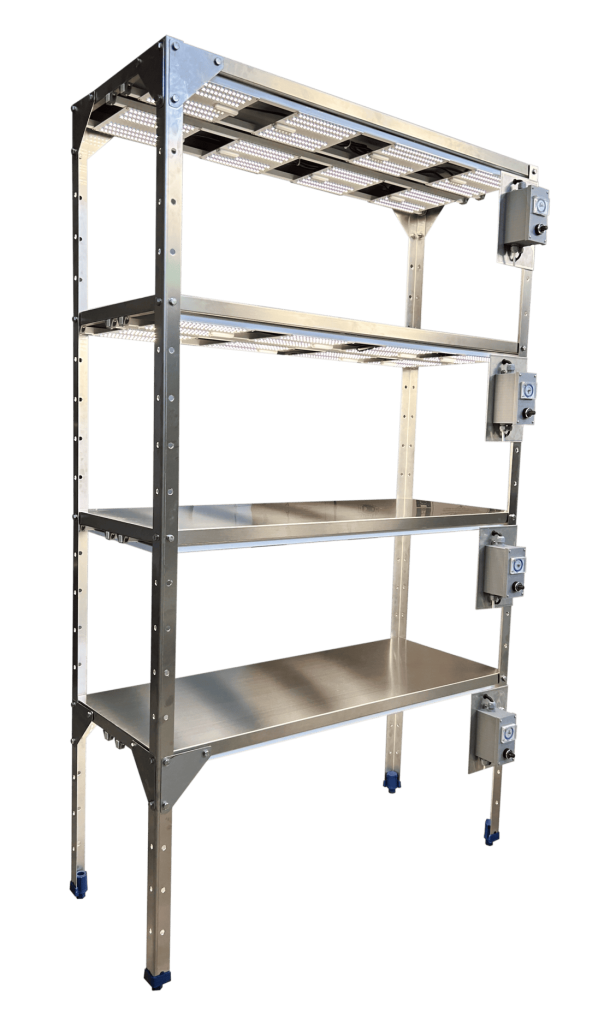

TYPICAL GROW RACK KIT CONFIGURATION

  • Metal structure in stainless steel, anodised aluminium or epoxy coated.
  • Dimensions: 1600 L x 600 D x 1800 H mm.
  • Height adjustable every 100 mm.
  • 3 / 4 or 5 illuminated levels, height adjustable.shelves reinforced with stainless steel or PVC sheets or epoxy coated sheet metal.
  • Daylight luminaires – 4000 K (optional: 2700, 3000, 3800, 5000, 6000 and 7000 K).

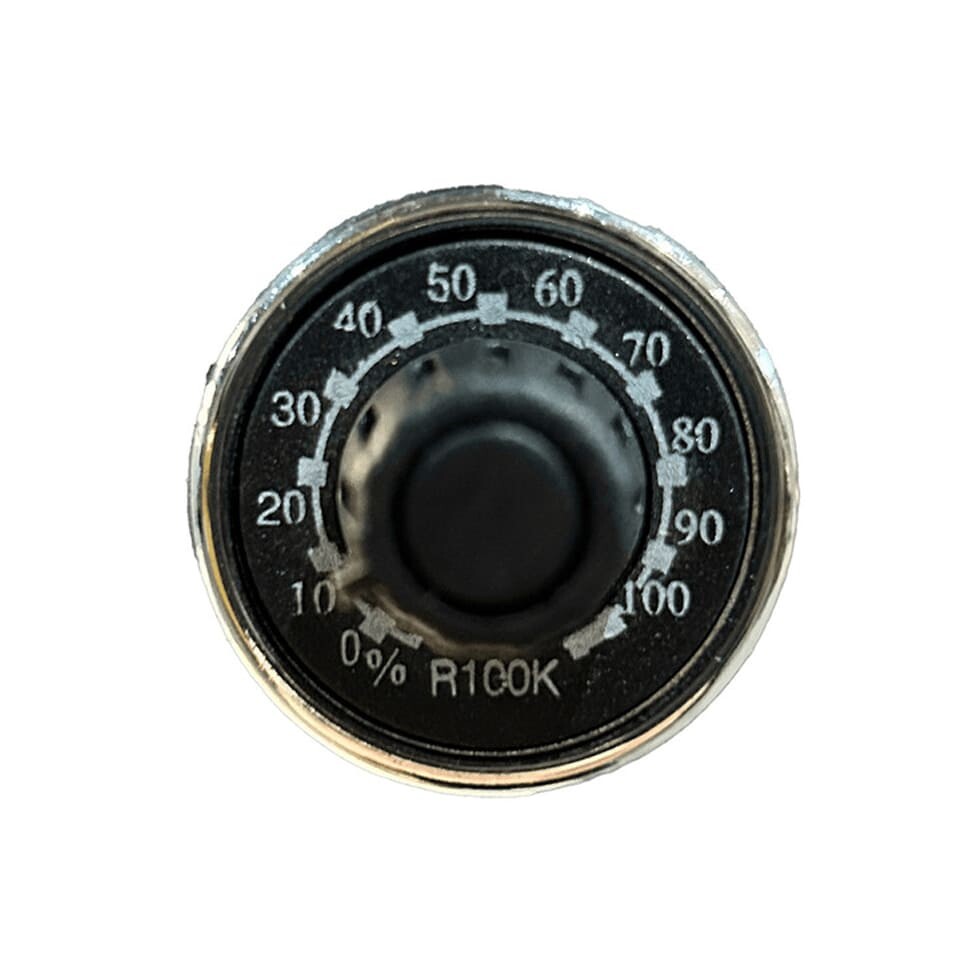

  • Full or partial illumination per level: optional 40 to 500 μmol/m²/s (15cm from the lights) – dimmable from 0% to 100%.

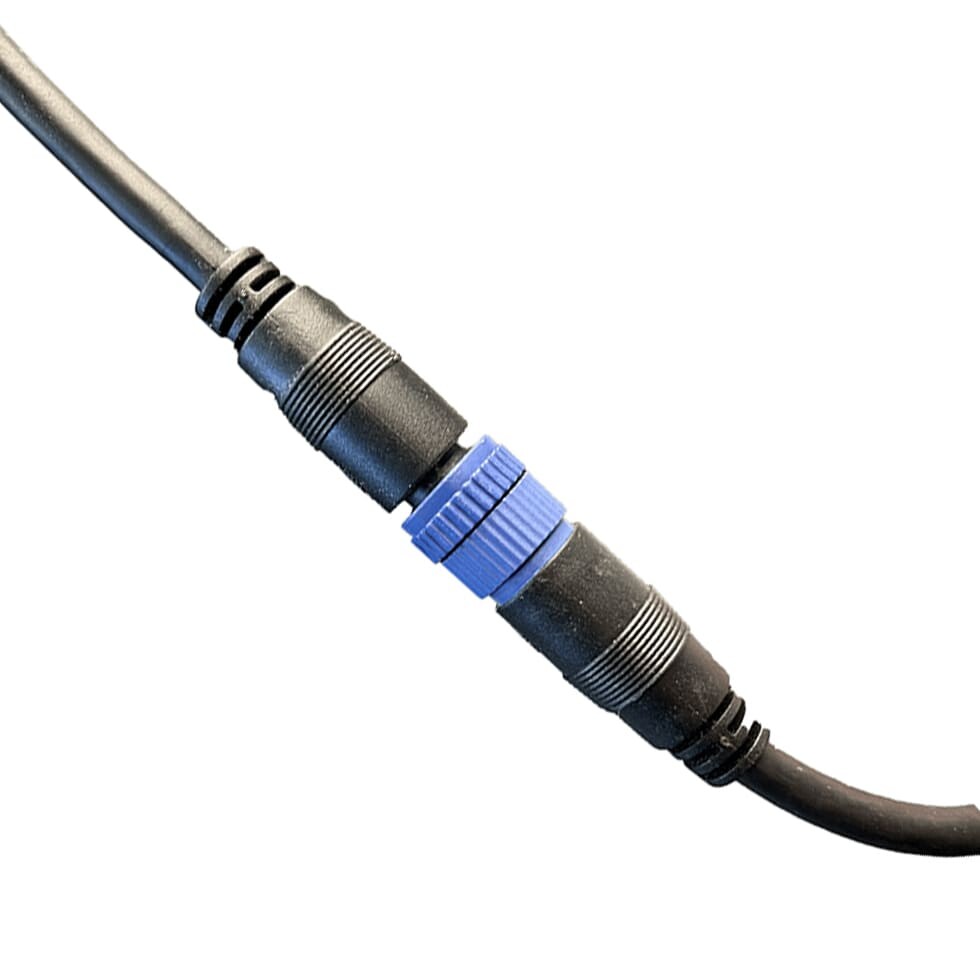

  • Power supply per level with plug and 2m connection cable.
